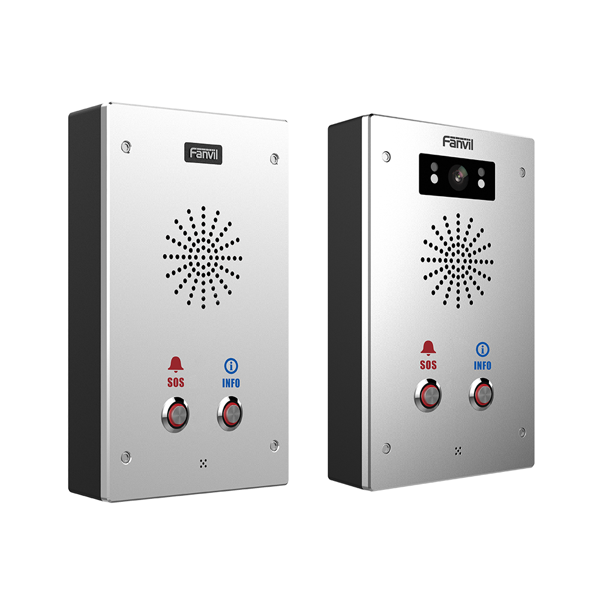

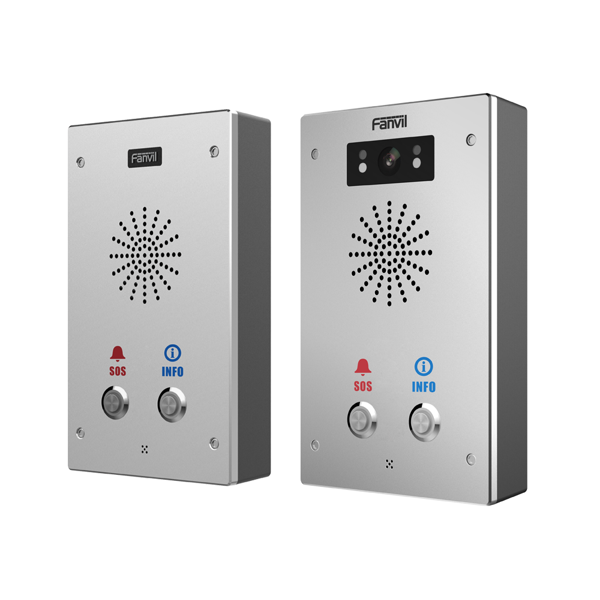

The Fanvil i16S-02P/i16SV-02P is a 2-button SIP intercom with IP65/IK10 protection. Audio (i16S-02P) or video (i16SV-02P) variants with G.722/Opus HD audio, dual relays, and TF card reader.
Key Features
- 2 Speed Dial Buttons — Dual destination calling

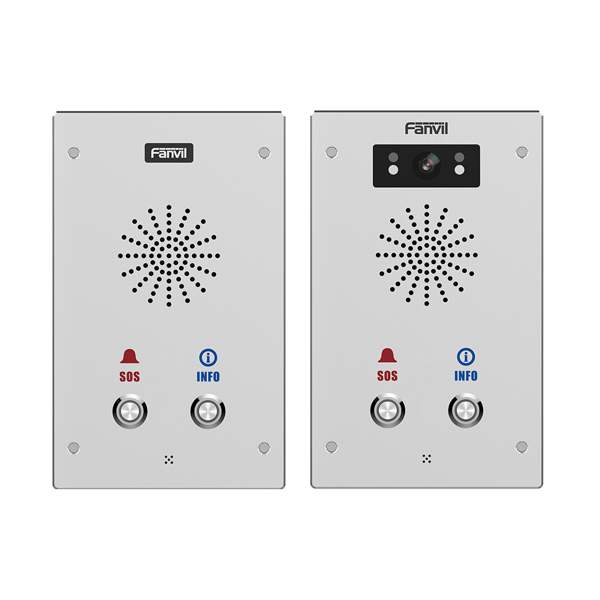

- Audio (i16S-02P) or Video (i16SV-02P) variants
- IP65 & IK10 Protection — Outdoor-rated durability
- G.722 & Opus HD Audio — Premium voice quality
- Dual Electric Relays — Enhanced access control

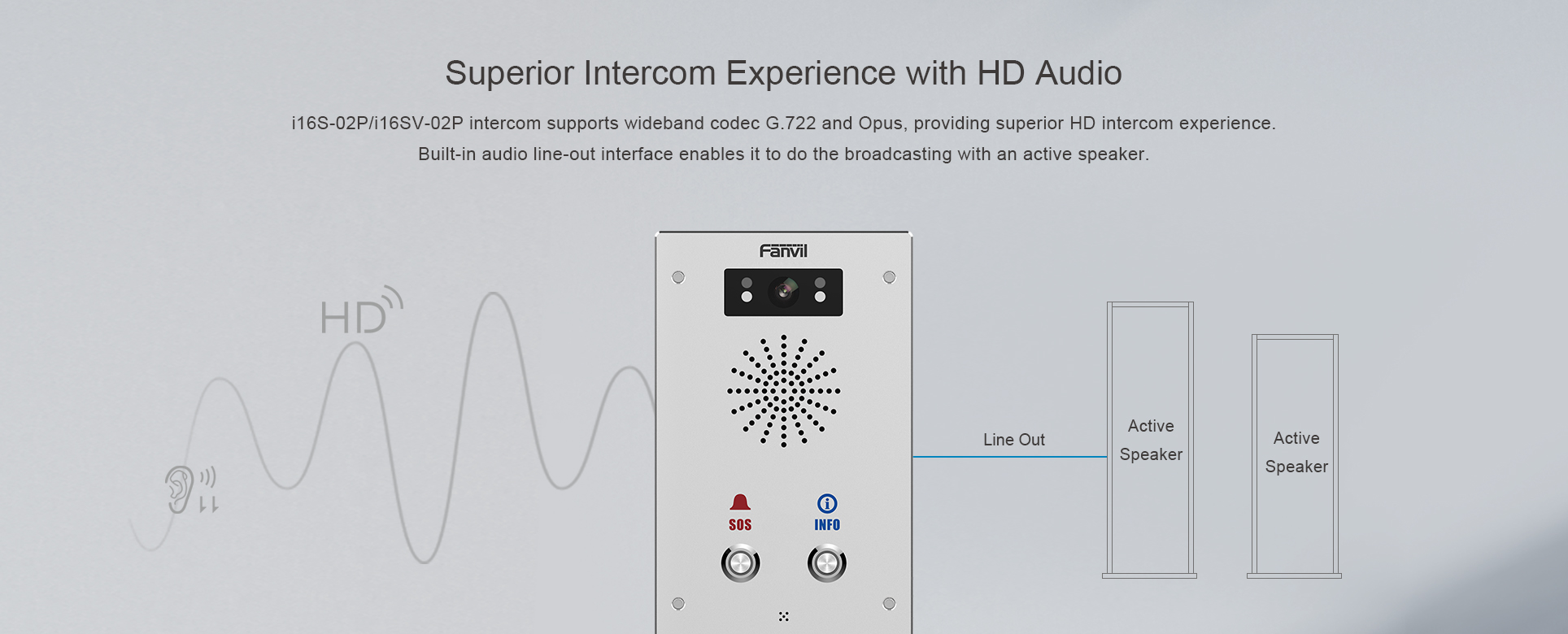

- Audio Line-in/Out — External audio expansion

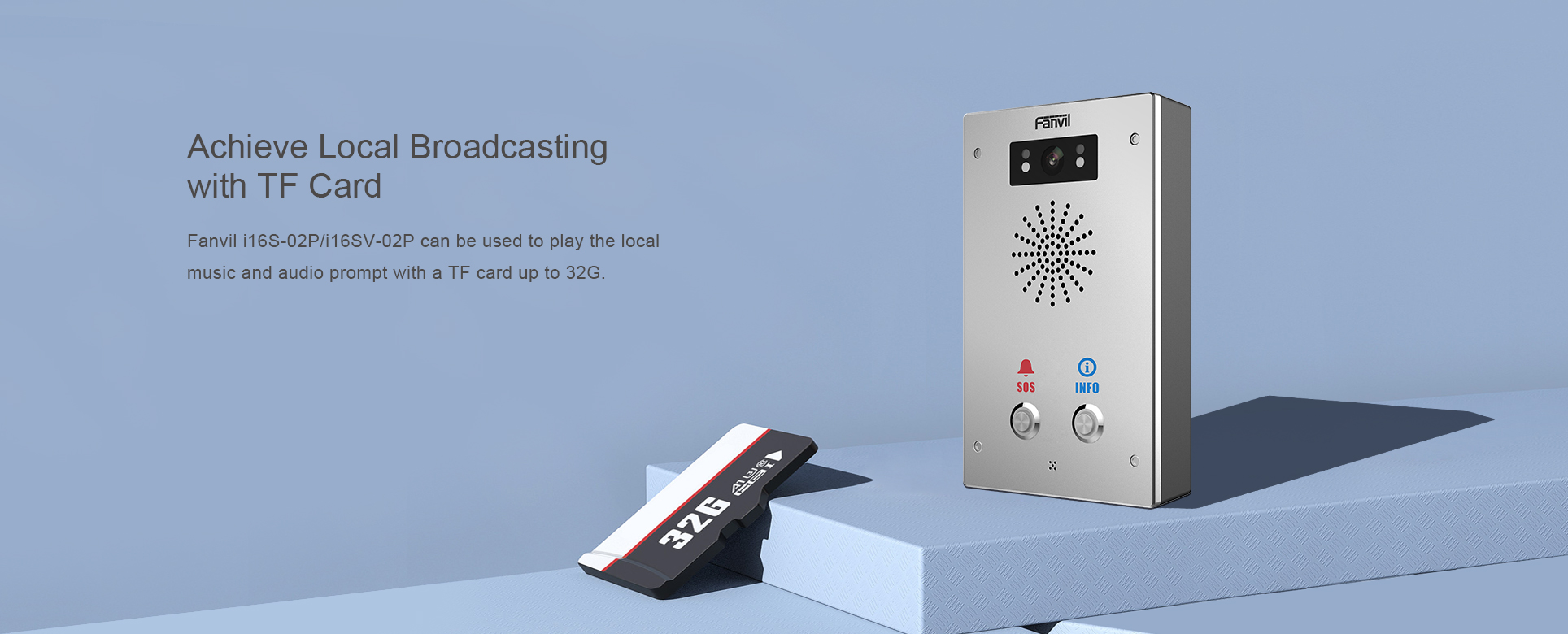

- TF Card Reader + MP3 Broadcast — Storage and PA
- Wide Temperature — -30°C to 60°C
Specifications
| SIP Lines | 2 |
| Camera | i16S-02P(×) i16SV-02P(√) |
| Standalone Intercom | √ |
| RTSP | i16S-02P(×) i16SV-02P(√) |
| ONVIF | i16S-02P(×) i16SV-02P(√) |
| HD Video | i16S-02P(×) i16SV-02P(1080P) |
| HD Audio | G.722, Opus |
| IP Camera Linkage | √ |
| Electric Relay | 2 |

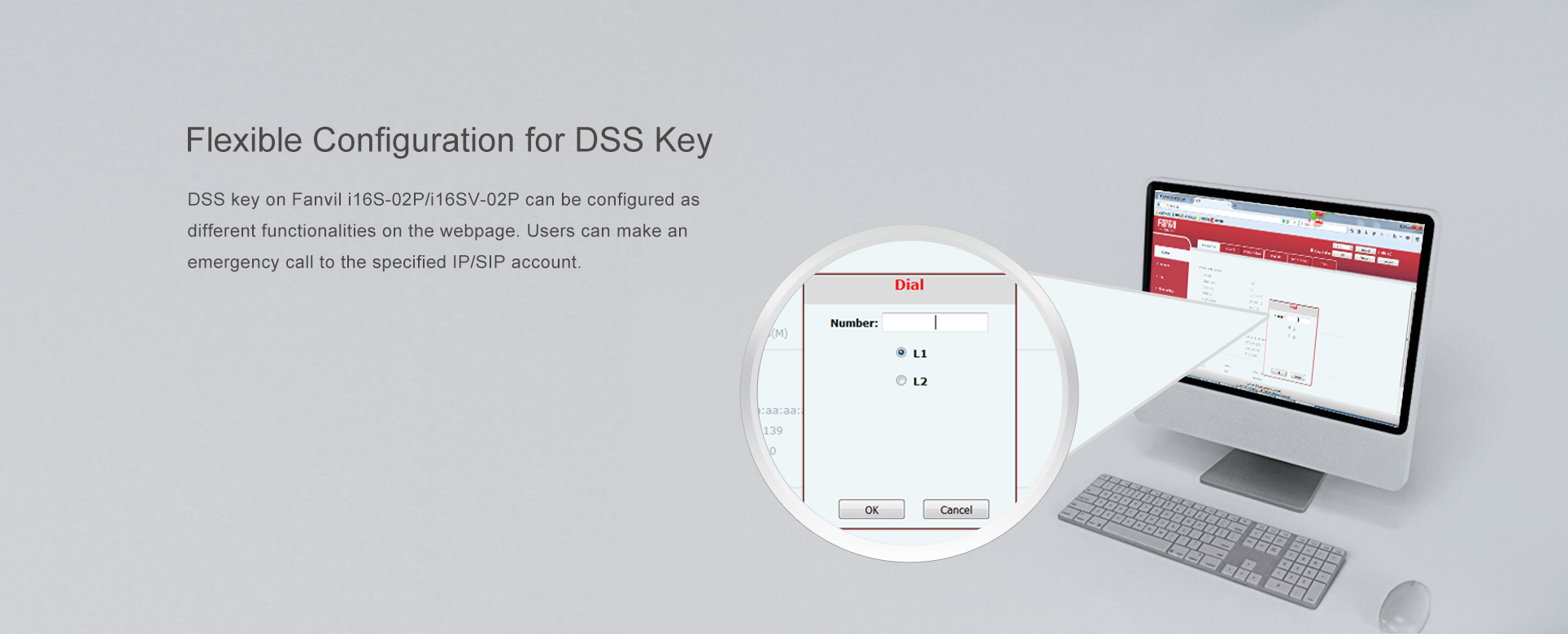

| Speed Dial Buttons | 2 |
| Audio Line-in/Out | √ |
| PoE | √ |
| Built-in 12V DC | √ |
| Tamper-Proof | √ |

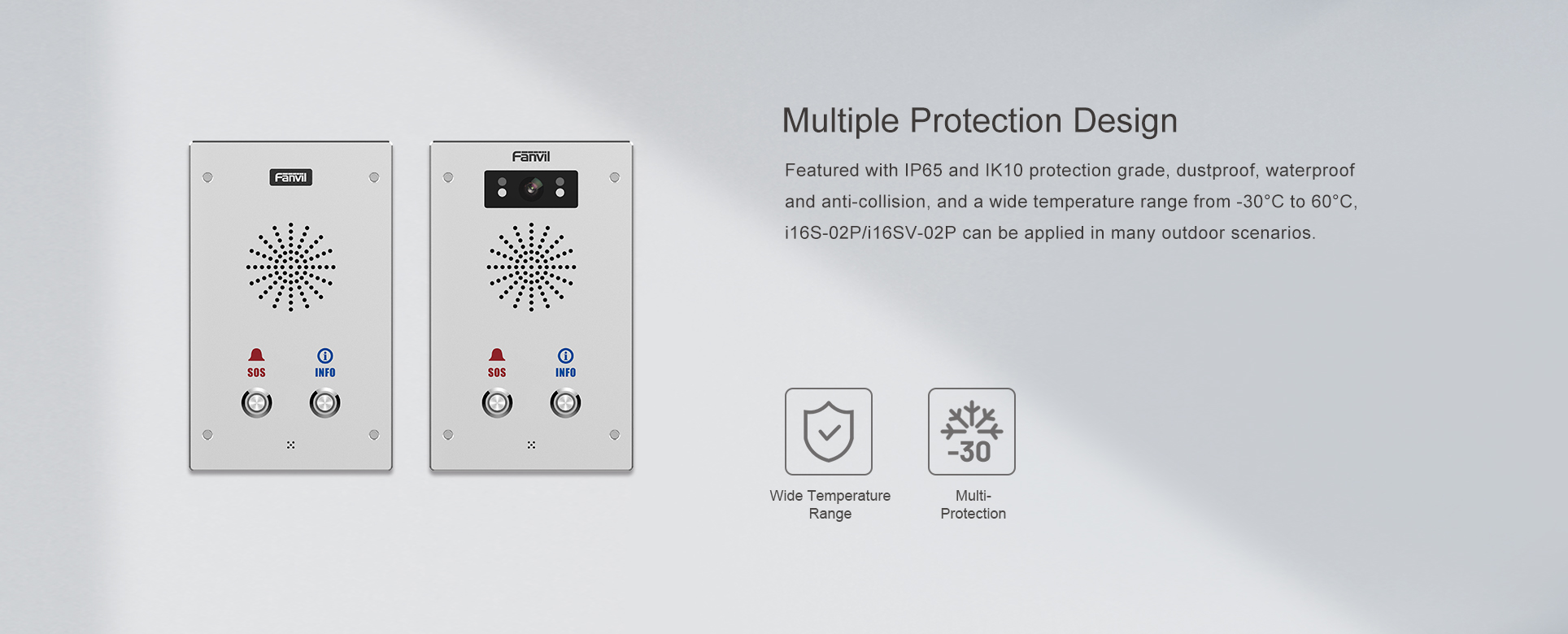

| Protection Level | IP65 & IK10 |
| Temperature Range | -30°C ~ 60°C |
| Power Amplifier | 3W |

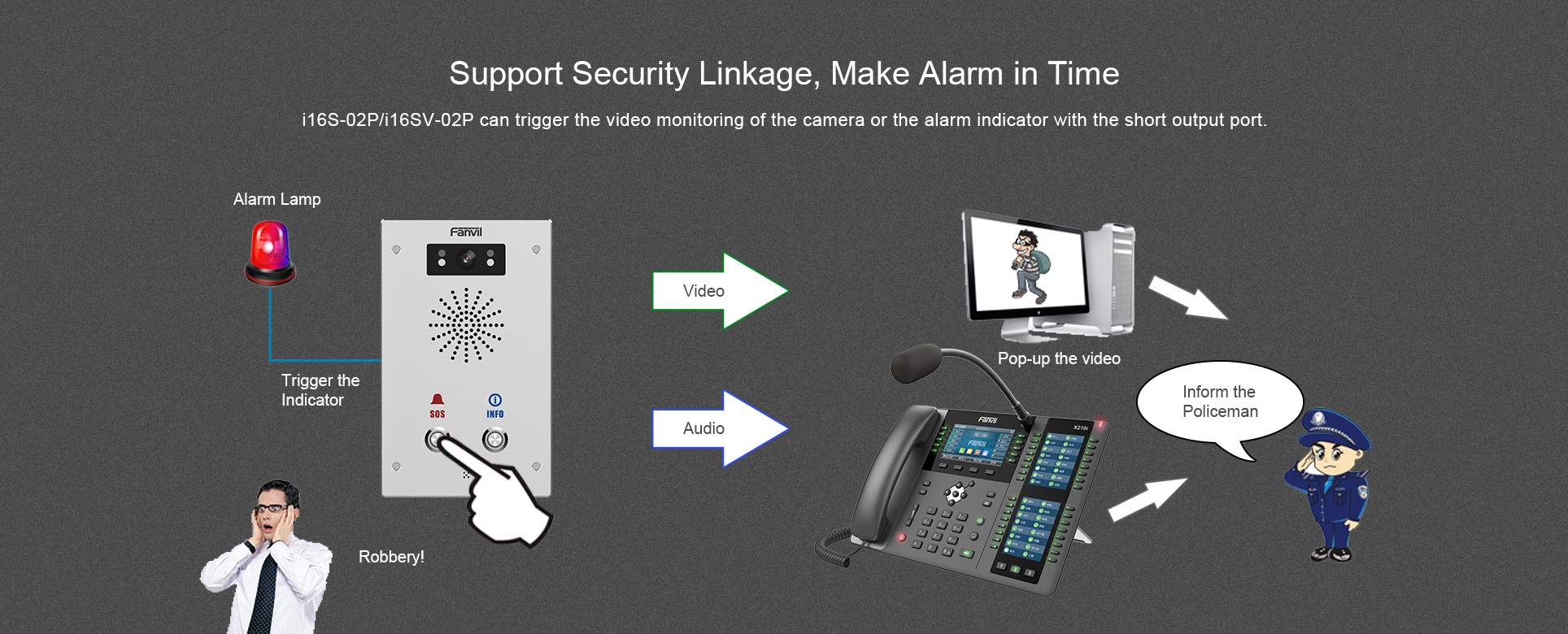

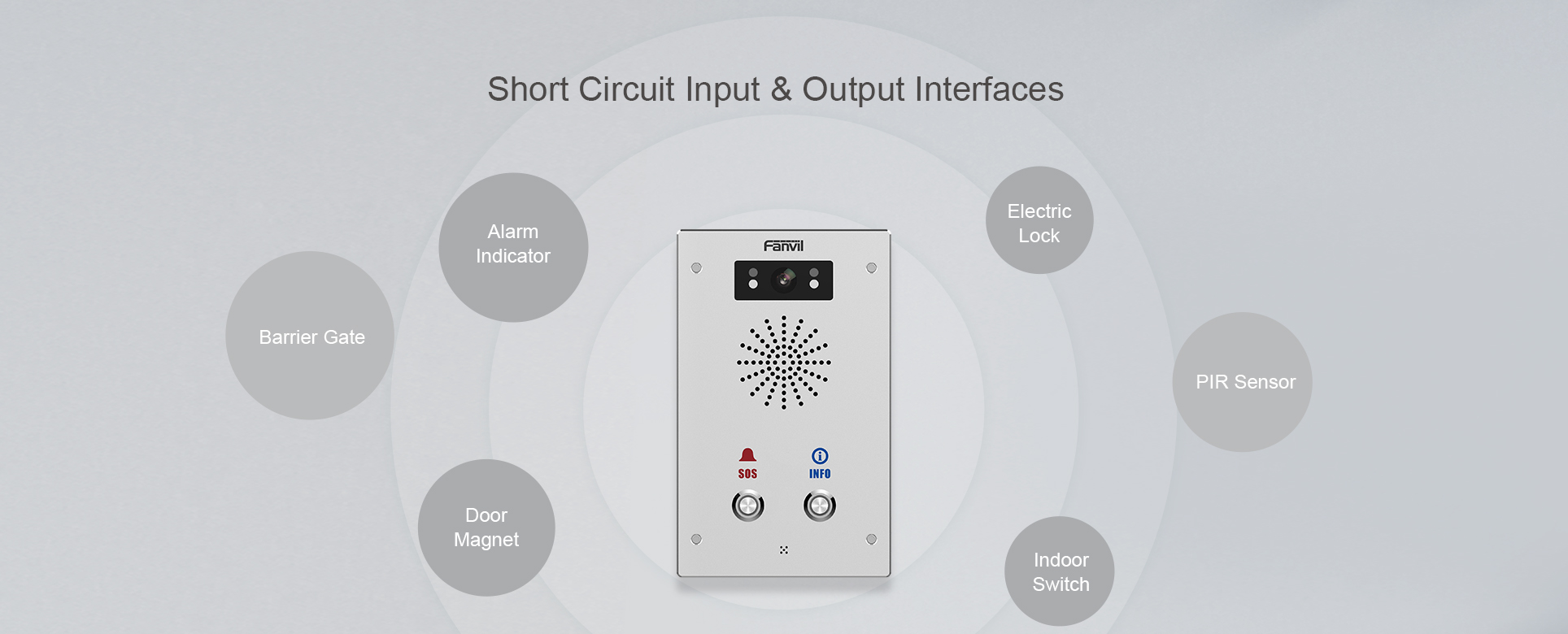

| Short Circuit Output | 2 |
| Short Circuit Input | 2 |
| Auto-Provisioning | √ |

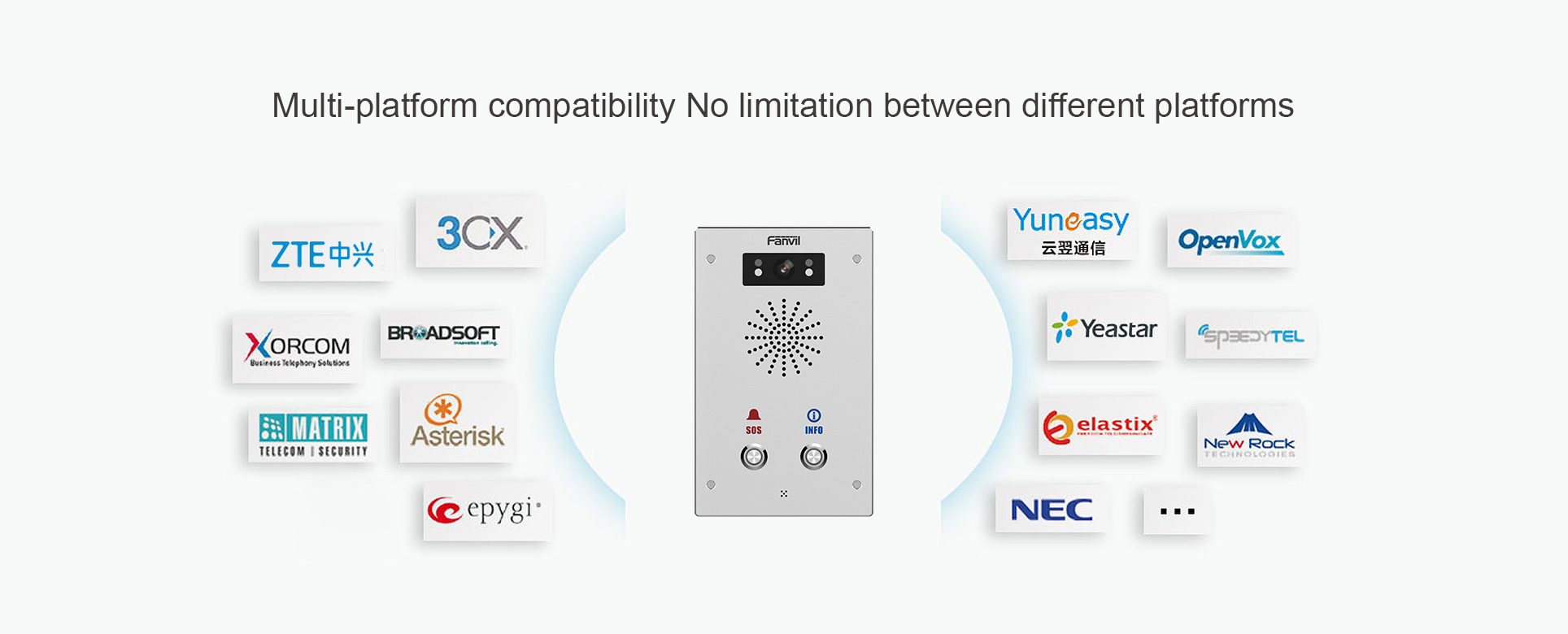

| Third-Party Integration | √ |
| TF Card Reader | √ |
| MP3 Broadcast | √ |
