Product Overview

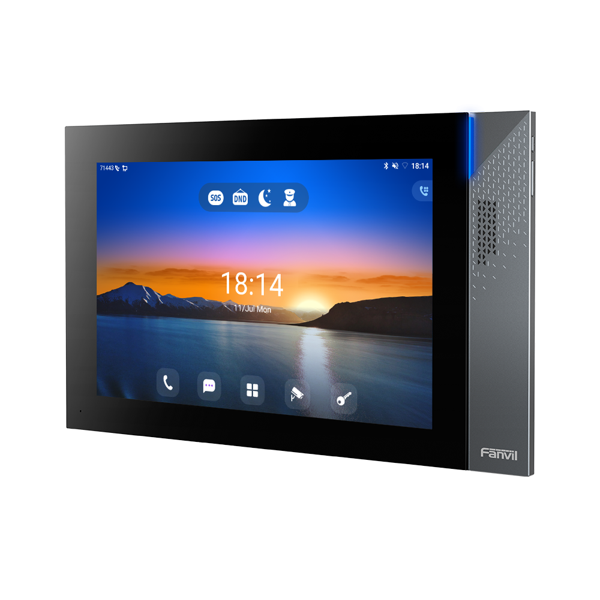

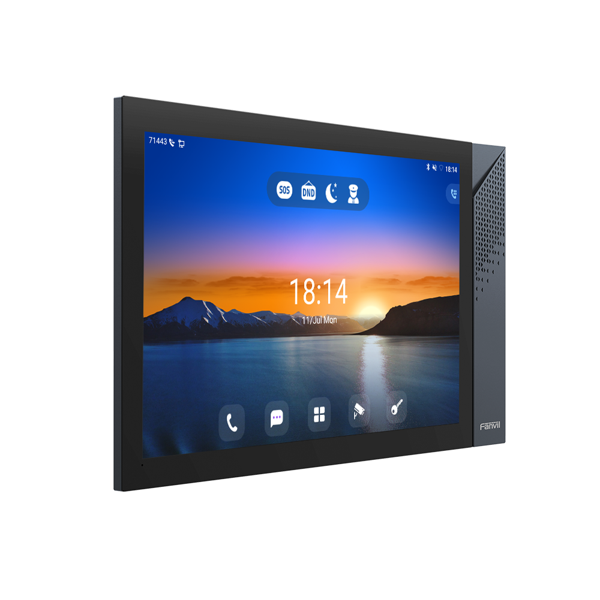

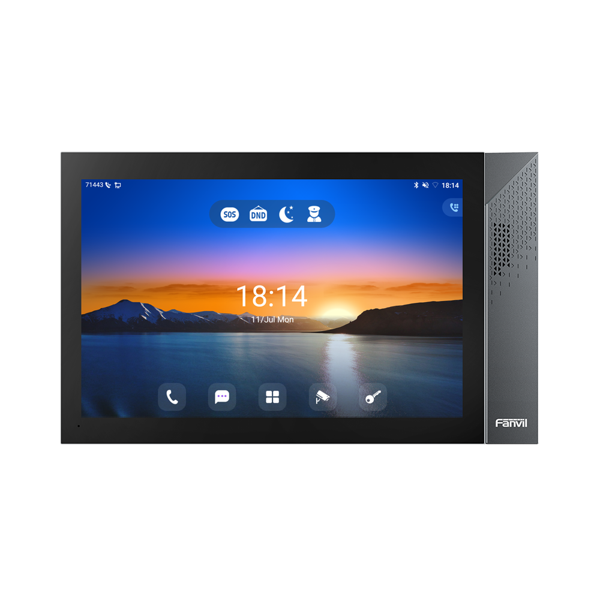

The Fanvil i57A indoor station features a 10.1-inch color touchscreen with an intuitive UI. Based on Android 9.0, it supports industry-specific application customization and secondary development. Equipped with powerful capabilities like remote door release and real-time security device monitoring, it serves as the smart management assistant for residential complexes, villas, and office buildings. Built-in 2.4G/5G dual-band Wi-Fi, Bluetooth 5.0, and USB interface. Supports wall-mount and desktop installation.
Key Features
- Android 9.0 OS: Powered by Android 9.0, supports third-party apps and secondary development
- 10.1-inch Capacitive Touchscreen: 1280×800 resolution capacitive color touchscreen, vivid and fluid
- 2 SIP Lines: Supports 2 SIP accounts, meeting basic communication needs
- 1080P HD Video: Supports 1080P full-HD video calls with H.264 encoding
- Built-in Wi-Fi & Bluetooth 5.0: Integrated 2.4G/5G dual-band Wi-Fi and Bluetooth 5.0

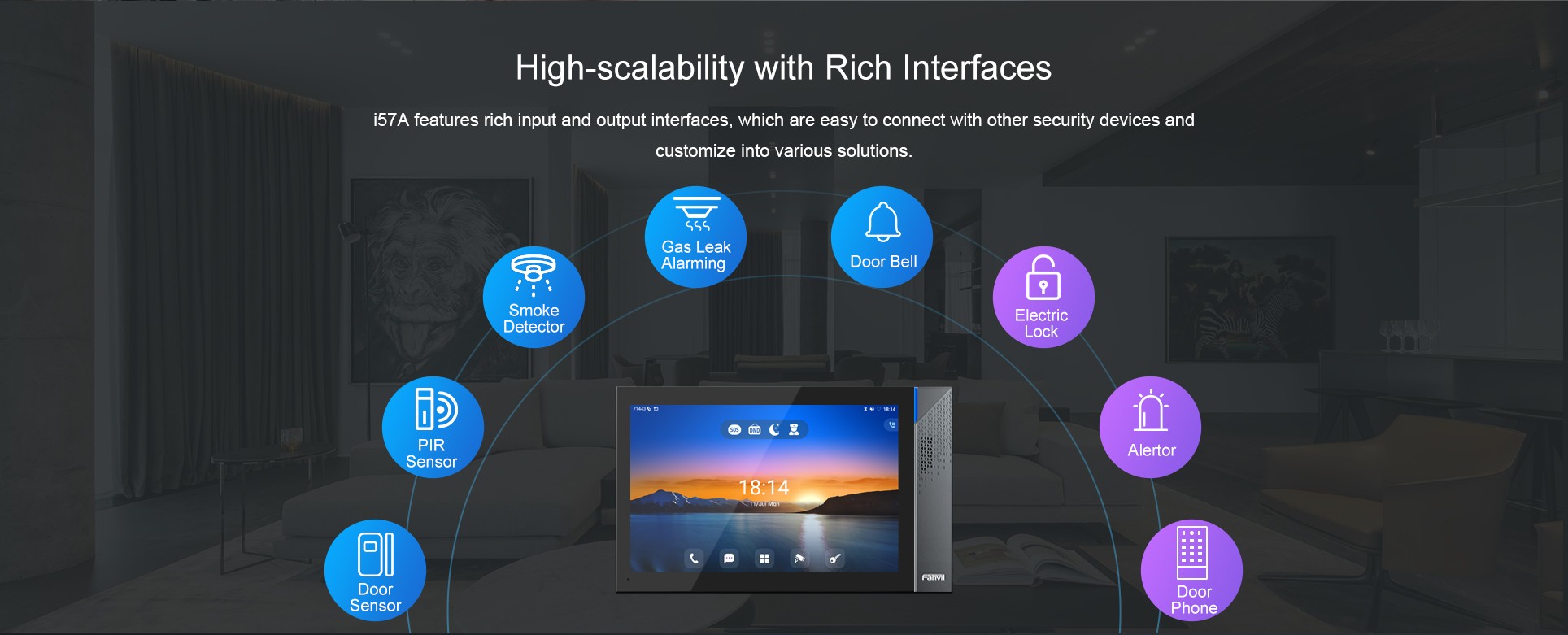

- Rich Expansion Interfaces: 8 alarm inputs, 1 short-circuit output, doorbell interface, RS-485, USB
- ONVIF Support: Supports ONVIF protocol for security monitoring integration
- TF Card Expansion: Supports TF card expansion, up to 256 GB
- Dual Speakers: Built-in dual speakers with AEC for clear hands-free audio
- PoE Powered: Supports PoE for simplified installation
- HD Voice: Supports G.722 and Opus wideband codecs for clear, natural calls
- Wall-Mount & Desktop: Supports both wall-mount and desktop installation
Specifications
| System | Android 9.0 |
| Screen | 10.1-inch 1280×800 capacitive color touchscreen |
| SIP Lines | 2 |
| HD Voice | √ |
| Wideband Codecs | G.722, Opus |
| Speaker Power | 2×1W dual speakers |
| Video Resolution | 1080P |
| Video Codec | H.264 |
| ONVIF | √ |
| Bluetooth | Bluetooth 5.0 |
| Wi-Fi | Built-in 2.4G/5G dual-band Wi-Fi |
| Keys | × |
| Alarm Inputs | 8 |
| Short-Circuit Output | 1 |
| Doorbell Interface | 1 |
| RS-485 Interface | 1 |
| TF Card | √ (up to 256 GB) |
| USB | √ |
| Network | 10/100 Mbps |
| PoE | √ |
| Installation | Wall-mount and desktop |
