Fanvil PN24 2-Wire PoE Switch

Fanvil PN24 2-Wire PoE Switch — 24× 2-Wire interfaces, 54V/3A high-power PoE supply, 1× RJ45 uplink, 10/100Mbps, plug-and-play, rack-mountable design, 440×189.85×44mm.

Overview

Fanvil PN24 is a 24-port 2-Wire PoE switch featuring a unique design that reuses existing cables. Equipped with 24 × 2-Wire interfaces and 54V/3A high-power PoE supply, it is purpose-built for large-scale deployments. No complicated installation or wiring is required — simply plug it in. PN24 is the ideal choice for upgrading large-scale communication systems in hotels, hospitals, enterprise campuses, and similar venues.

2-Wire Technology Advantages

Fanvil 2-Wire Solution adopts PLC (Power Line Communication) technology, upgrading analog communication systems to IP networks. By utilizing existing 2-Wire cables, it simultaneously delivers power and data transmission, eliminating the need for rewiring and significantly reducing upgrade costs. The 2-Wire devices support transmission distances of up to 300 meters with plug-and-play simplicity, making them ideal for upgrading from traditional phone systems to IP communications in hotels, enterprises, hospitals, and similar venues.

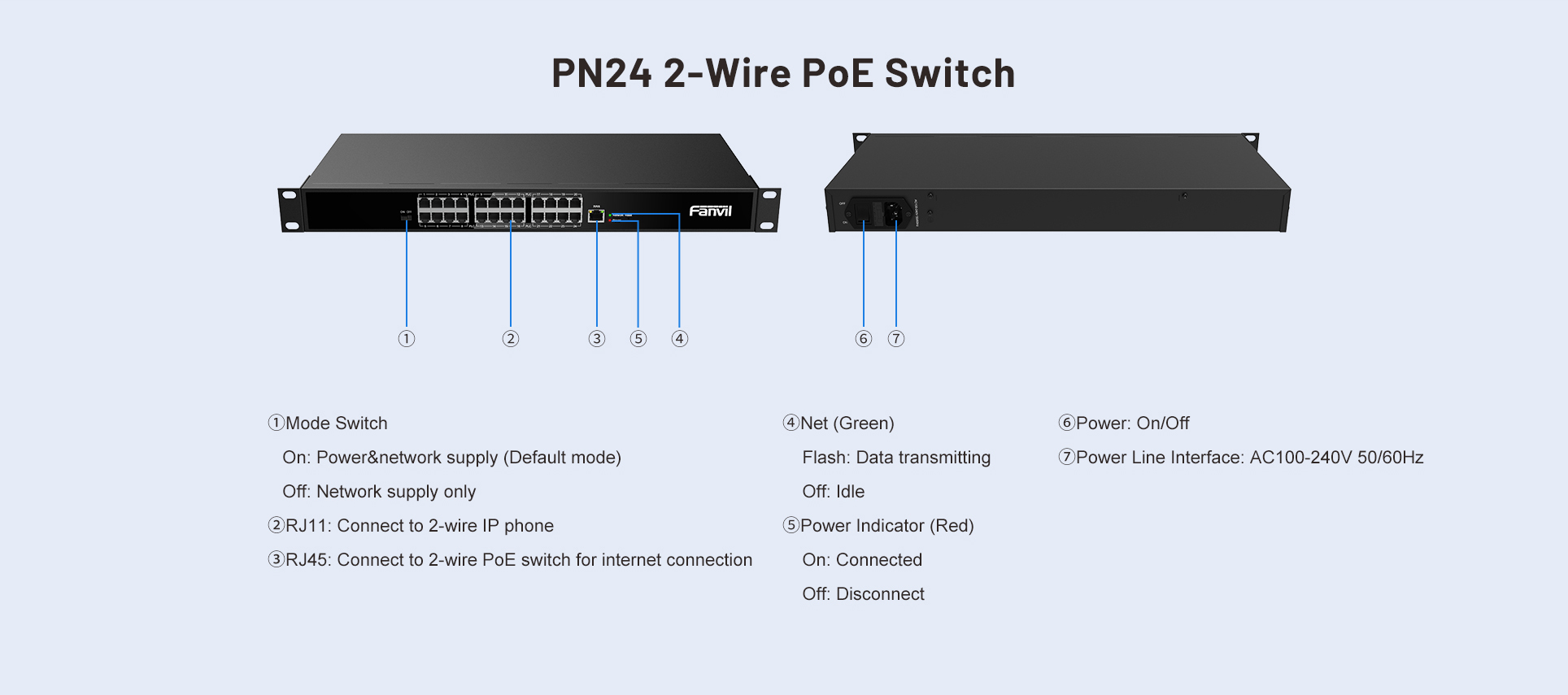

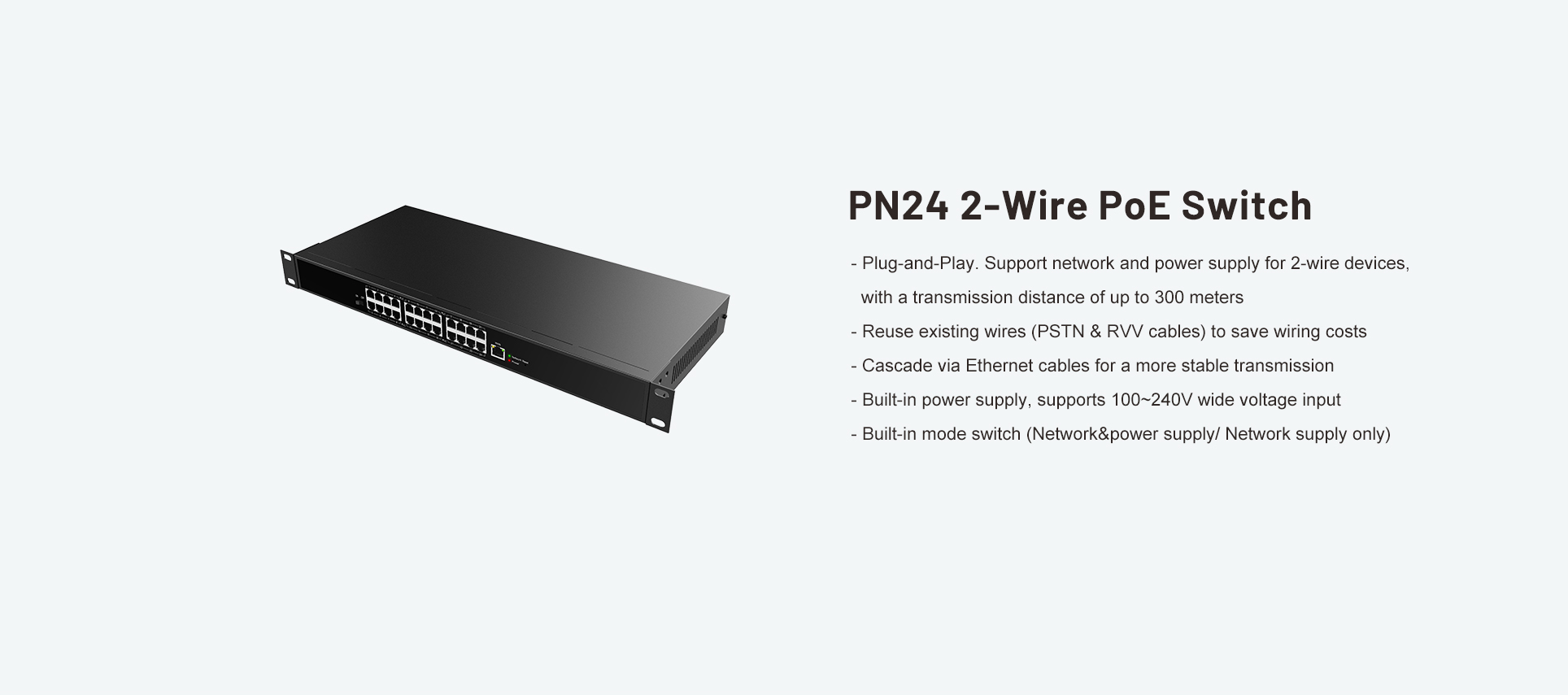

PN24 Features
PN24 Features
PN24 Features

Key Features

  • 24× 2-Wire Interfaces: High-capacity design supports up to 24 2-Wire devices, ideal for large-scale deployments
  • High-Power PoE Supply: 54V/3A ensures stable simultaneous operation of multiple devices
  • Plug and Play: Reuses existing cables, no rewiring, rapid deployment
  • 1× RJ45 Uplink Port: 10/100Mbps uplink for stable IP network connection
  • PLC Technology: Power Line Communication enables combined data and power transmission over a single line
  • 300m Transmission Distance: Supports up to 300m power and network transmission via 2-Wire
  • Galvanized Steel Housing: Rugged and durable, ideal for equipment rooms and various installation environments
  • Rack-Mount Design: Standard 1U rack-mount form factor for unified equipment room management

Application Scenarios

  • Hotel Upgrade & Renovation: Reuse existing telephone cables to quickly upgrade to IP communication, supporting room service, voicemail, and other smart features without altering room wiring

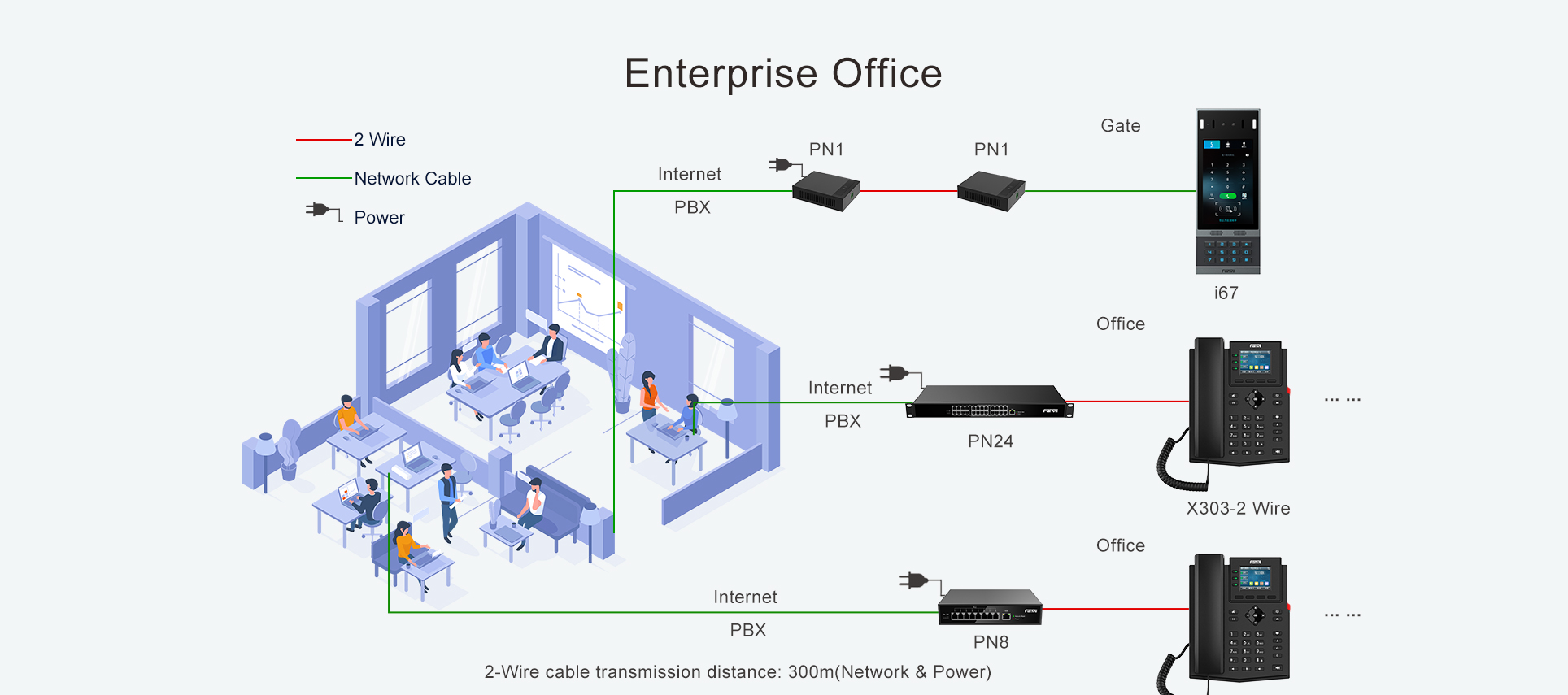

  • Enterprise Office Upgrade: Seamlessly migrate from traditional PBX systems to IP-PBX while preserving cable investments and reducing relocation/renovation costs
  • Hospital Communication Upgrade: Upgrade ward communication systems while retaining existing cables, enabling efficient IP communication between nurse stations and patient rooms
  • Schools & Campuses: Utilize existing cable infrastructure to rapidly deploy campus-wide IP broadcasting and communication systems

2-Wire Solution vs. Traditional Rewiring

Comparison2-Wire SolutionTraditional Rewiring
Cable RequirementsReuse existing 2-Wire cablesRequires new network cable installation
Installation TimePlug-and-play, minutes-level deploymentRequires days to weeks
Business ImpactNear-zero disruptionRequires shutdown or phased construction
Overall CostSignificantly lower (saves cables, labor, time)High (cables + labor + business loss)
Transmission DistanceUp to 300 metersStandard 100m (switch required for extension)

Specifications

Network Interface1 × RJ45
Network Speed10/100Mbps
2-Wire Interfaces24
Power Supply54V/3A
Operating Temperature-20°C ~ 50°C
Shell MaterialGalvanized Steel
Dimensions440 × 189.85 × 44mm
Weight2530g
InstallationDesktop / Wall-mounted / Rack-mounted
