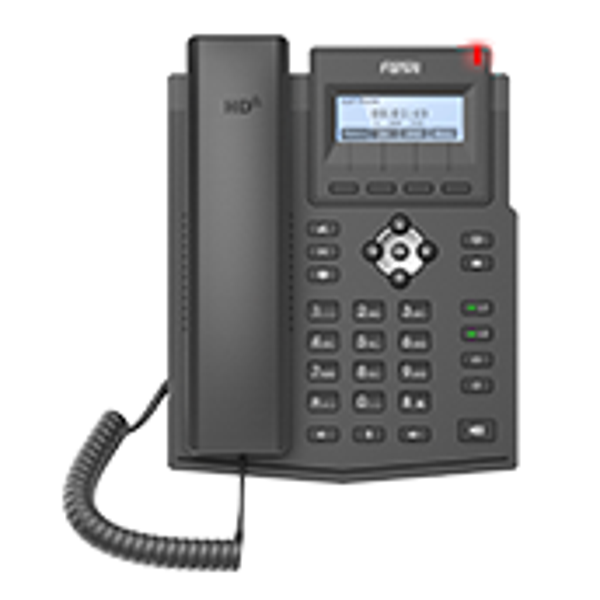

Fanvil X1P Entry Level IP Phone (POE)
Fanvil X1P is an entry-level, cost-effective professional desktop IP Telephone. Coupled with basic features including 2-lines, 3-party conference function, easy-to-read backlight Lattice display, it deftly meets the affordability and reliability requirements of any budget.
2 SIP Lines

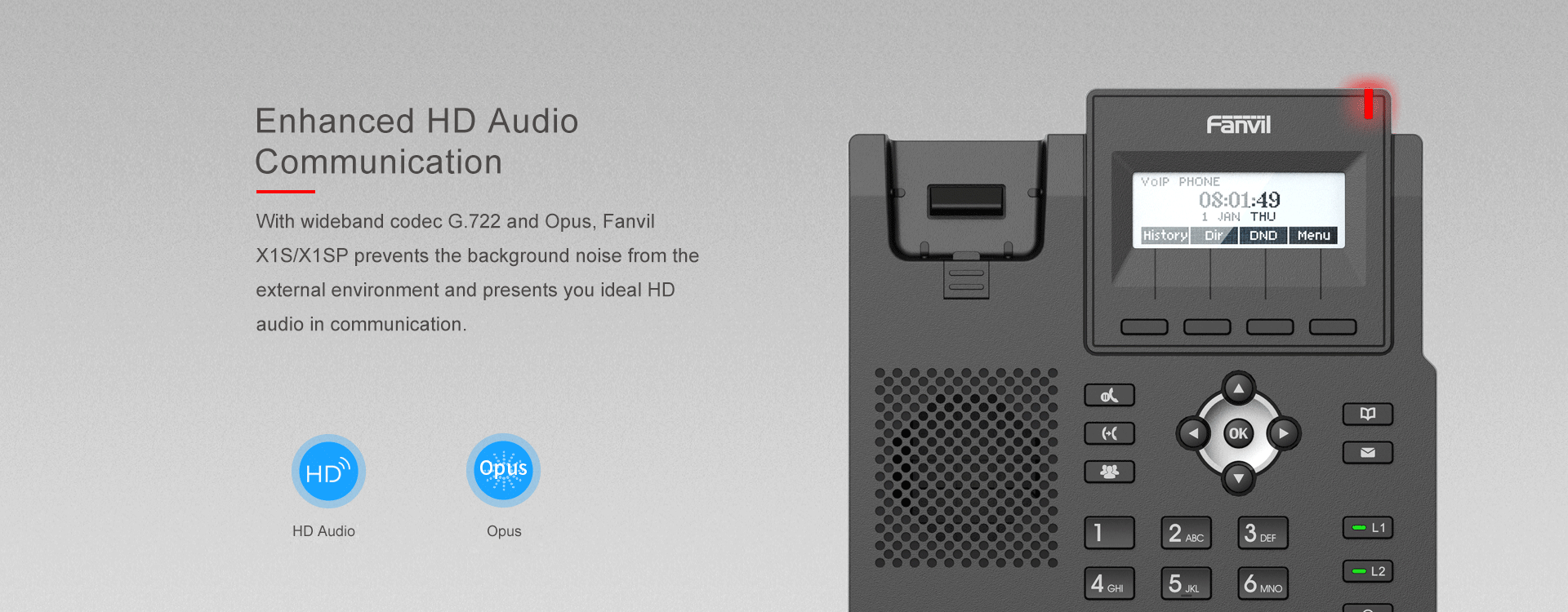

HD Voice
POE Enabled(X1P)
Handset(HS) / Hands-free(HF) / Headphone(HP) mode (EHS support for Plantronics headsets)

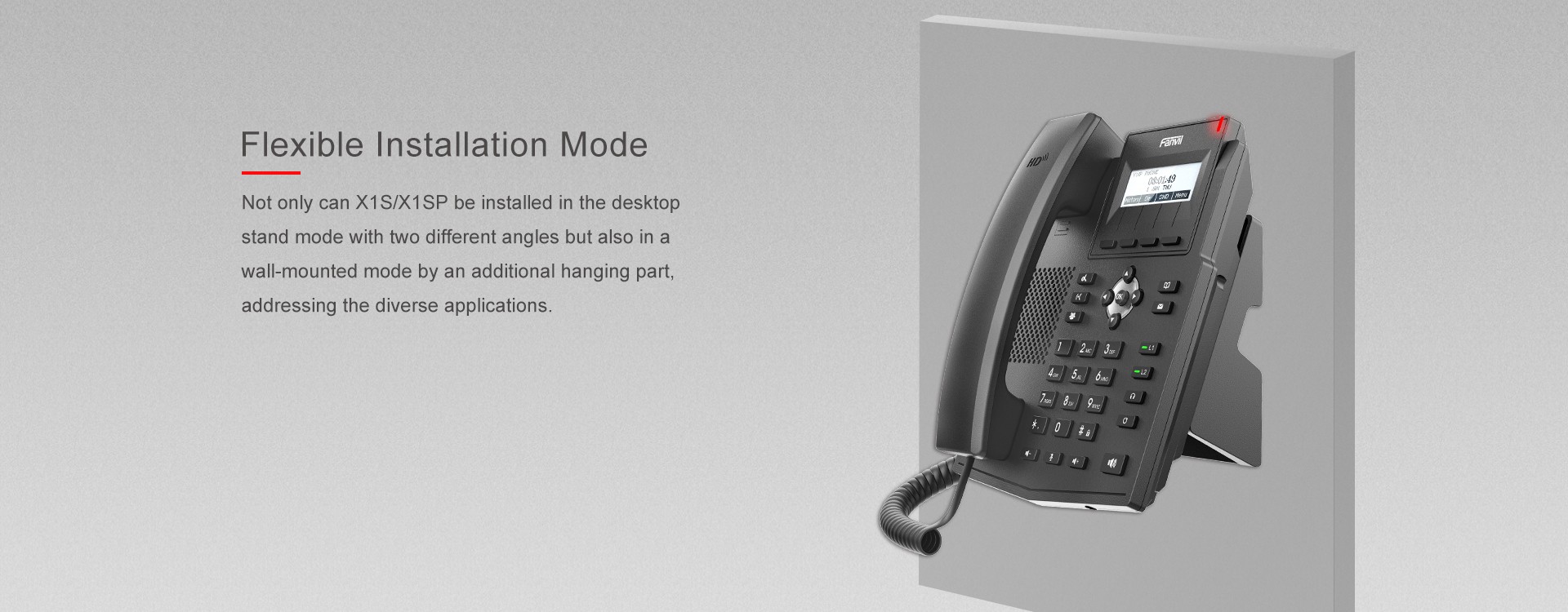

Desktop / Wall-mount installation
Economical and Environmental friendly package
Industrial Standard Certifications: CE/FCC
Call out / answer / reject
Mute / unmute (microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (depending on server)
Redial / Auto Redial
Do-Not-Disturb (per line / per phone)
Auto-Answering (per line)
Voice Message (on server)
Local 3-way Conference
Hot Line
Hot-Desking
Remote Phonebook (XML/LDAP)
Intelligent Contact Number Matching / Filtering
Call log (100 entries total, in/out/missed)
Voice Message Waiting Indication (VMWI)
Network Time Synchronization
Multi-language support in screen and web UI: English, Chinese(Traditional/Simplified), Japanese, Russian, Italian, Turkish, Germany, Dutch, Spanish, Hebrew, Polish, French etc.
Wideband ADC/DAC 16KHz Sampling
Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
Physical: 10/100Mbps(X3S)Ethernet, dual bridged port for PC bypass
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP (Basic Unencrypted) / OpenVPN
VLAN
QoS
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
PPPoE
802.1x
L2TP (Basic Unencrypted)
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR069
RFCs:
354/1321/1350/1769/1889/1890/2131/2132/
2616/2617/2661/2833/2976/3261/3262/3263/
3264/3265/3268/3311/ 3489/3711/4346/4566/
5630/5865
Maintenance:
Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069
Web Management Portal
Web-based Packet Dump
Configuration Backup/Restore
Auto/Manual Online Software Upgrade
Syslog
Physical Features:

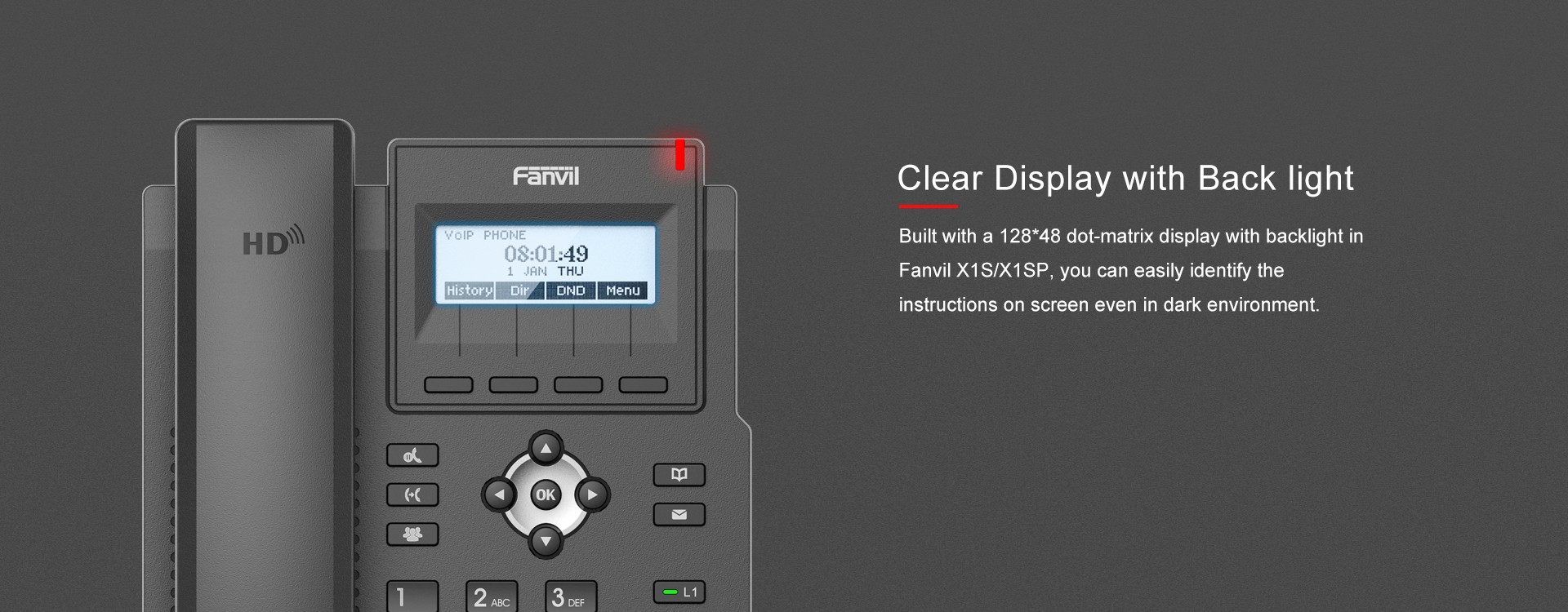

LCD x1: 128 x 48 dot-matrix include backlight
Keypad: 24 keys, including
4 Soft-keys
4 Function Keys (up, down, headset, redial)
12 Standard Phone Digits keys
2 Volume Control Keys, Lower/increase(Let/Right)
1 Mute Key
1 Hands-Free key
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
RJ9 Phone Jacket x2: Handset x1, Headphone x1
RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 1 Enabled), PC x1 (Bridged to Network)
Main Chipset: Broadcom
DC Power Input: 5V/600mA
Working Temperature: 0 ~ 40℃
Working Humidity: 10 ~ 65%
Desktop Stand
Colour: Black
Device Dimensions: 164 x154 x166mm(Desktop Stand)
