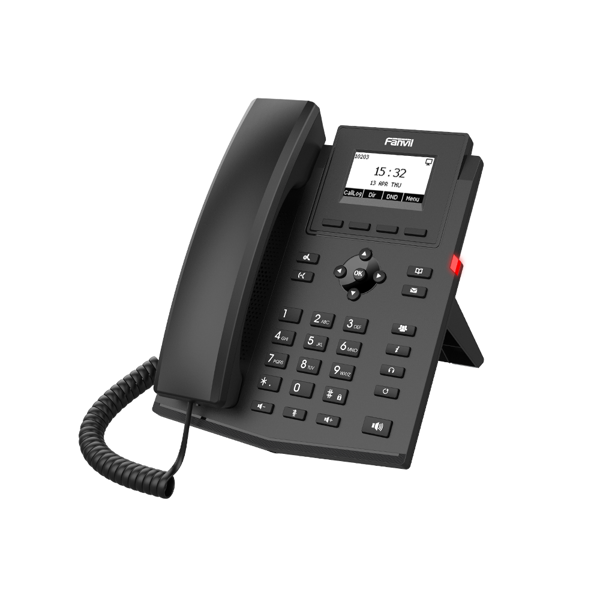

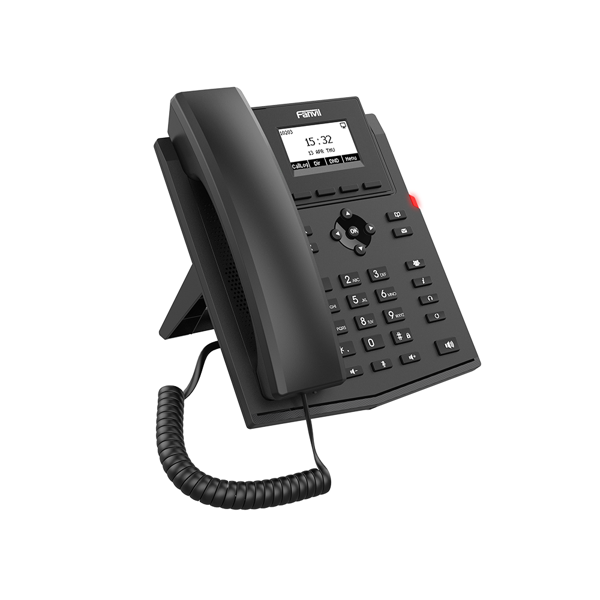

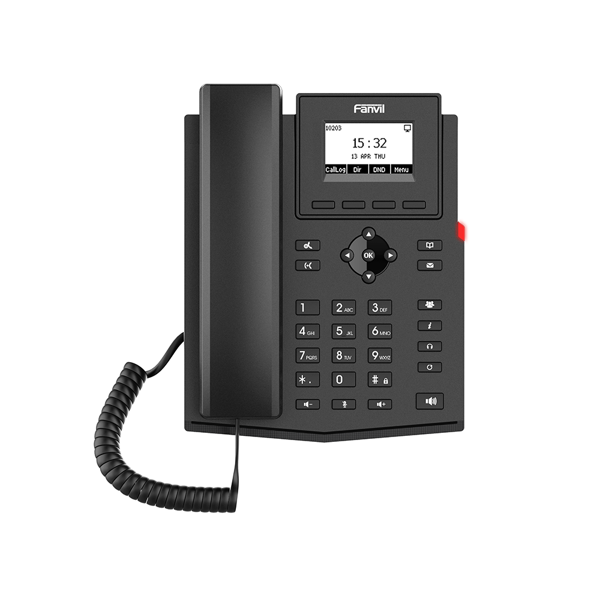

Fanvil X301/X301P Entry Level IP Phone -

Overview

Fanvil X301/X301P is the cost-effective SIP phone with multi-function, designed for entry-level communication needs. It features a 2.3-inch 132×64 pixel dot-matrix display with backlight, supporting 2 SIP lines and 6-way audio conference to render a user-friendly experience. X301/X301P has rich functions such as HD audio, dual 10/100 Mbps network ports and integrated PoE (only X301P), providing an efficient and high-quality business communication experience for enterprises.

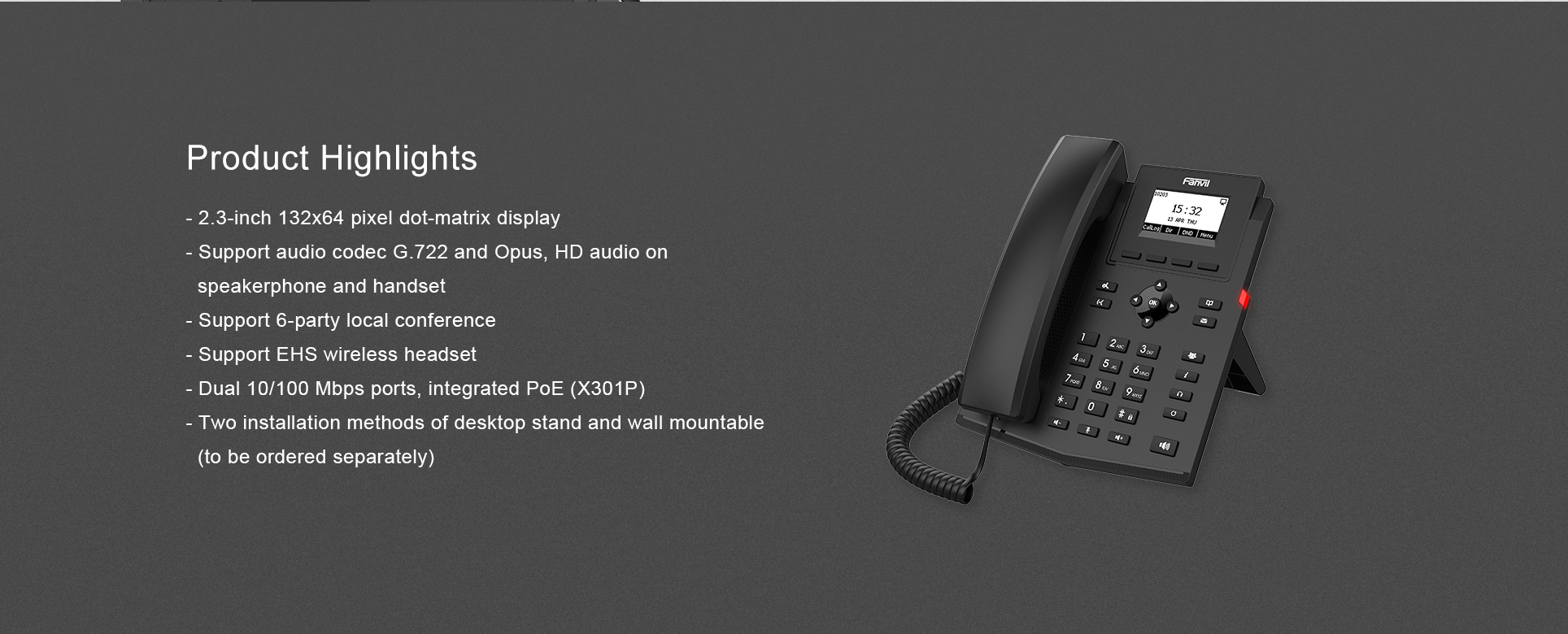

Key Features

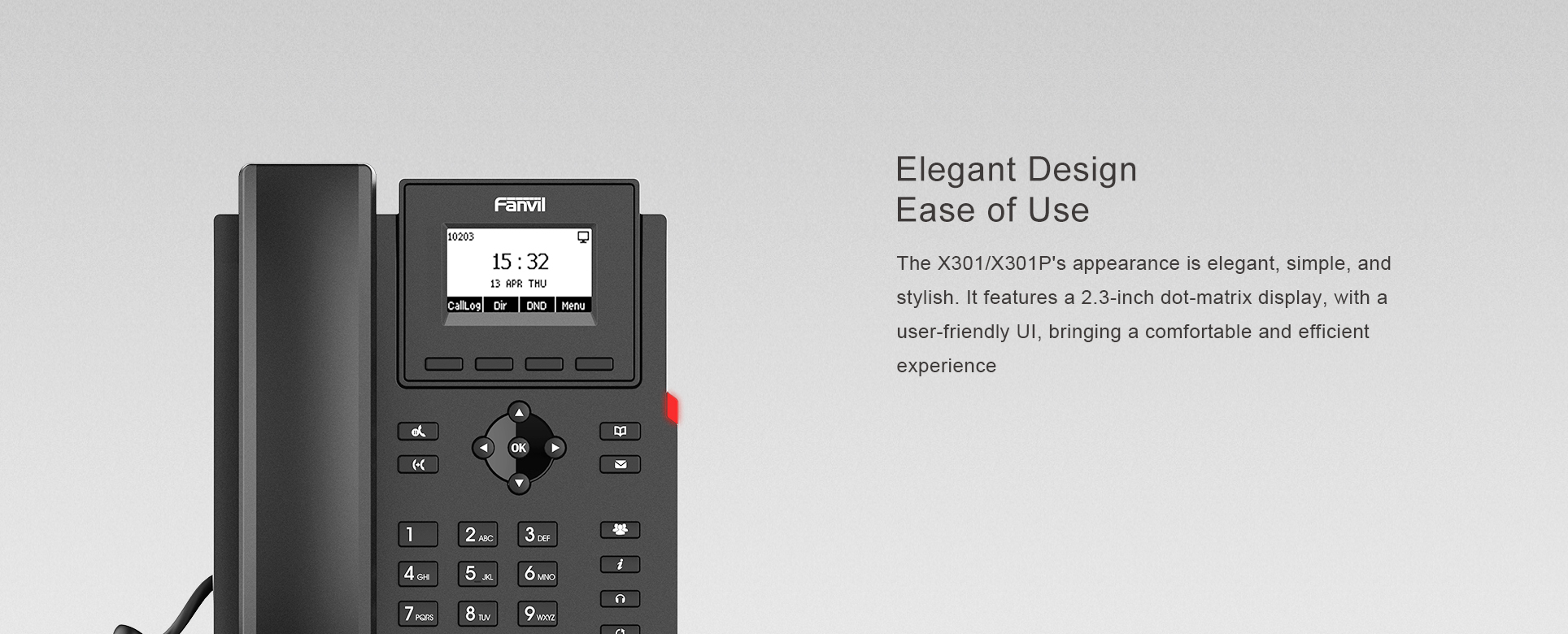

2.3-inch Dot-Matrix Display: 132×64 pixel dot-matrix display with backlight for clear information visibility
2 SIP Lines: Support 2 SIP accounts for basic call management
HD Voice: Supports G.722 and Opus wideband codecs for crystal-clear audio
6-Way Audio Conference: Built-in 6-party local conference capability
Dual 10/100 Mbps Network Ports: 2×10/100 Mbps network ports for reliable connectivity
PoE Support (X301P): Integrated Power over Ethernet on X301P model for simplified cabling
EHS Headset Support: Electronic Hook Switch compatibility for wireless headset integration

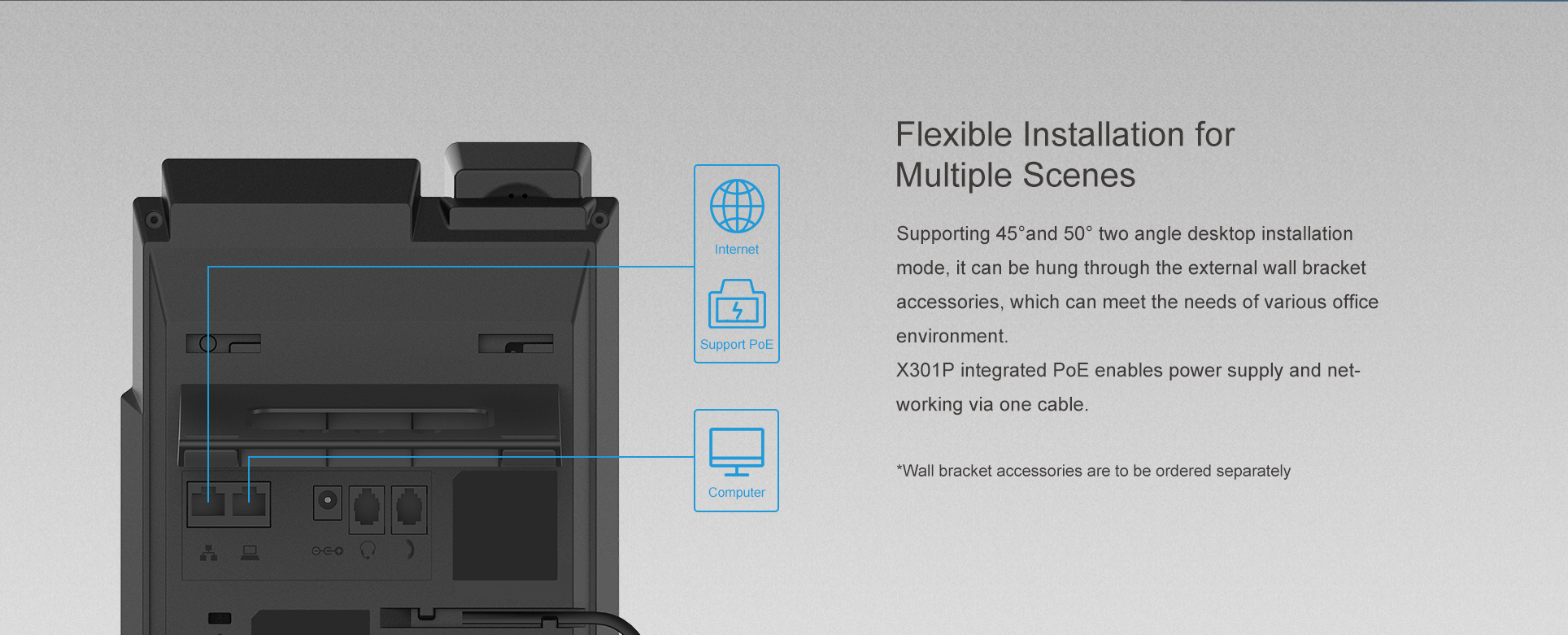

Wall Mountable: Supports wall mounting via separate accessories for flexible deployment
1000 Phonebook Entries: Extensive local and remote directory for easy contact management
600 Call Logs: Comprehensive call history storage for efficient call tracking

Specifications

Operating System	Linux
Main Screen	2.3-inch 132×64 Dot-Matrix Display
Backlight	✓
Line Keys	—
DSS Keys	—
SIP Lines	2
Audio Conference	6-way Local Conference
Call Logs	600
Local Phonebook	1000
Remote Phonebook	1000
Action URL / URI	✓
HD Audio	✓
Wideband Codecs	G.722, Opus
Narrowband Codecs	G.711a/u, G.726, G.723.1, G.729, G.729A, G.729B, G.729AB, iLBC
Wi-Fi	—
Network Ports	2×10/100 Mbps
PoE	X301P: ✓ (X301: ✗)
EHS Headset	✓
Desktop Stand	45° and 50°
Wall Mountable	✓ (via separate accessories)
IPv6	✓
