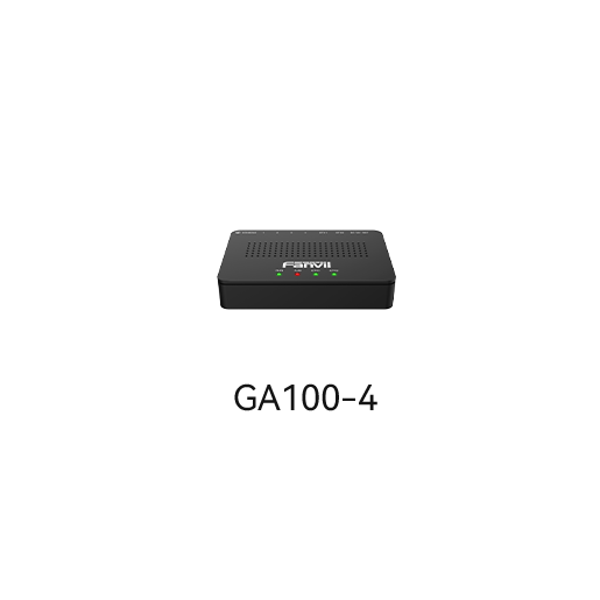

The Fanvil GA100-4 FXS VoIP Gateway enables seamless integration of traditional analog endpoints, such as telephones and fax machines, into SIP networks. With 4 FXS ports and 2 Ethernet ports (10/100Mbps), the GA100-4 delivers a stable, reliable, and flexible VoIP access solution for IP call centers, multi-branch deployments, and enterprise communication networks.
Key Features
- 4 FXS Ports: RJ11 interface for analog telephone and fax connectivity
- SIP Protocol Support: Full SIP compliance (RFC3261) with UDP, TCP, and TLS transport for secure communications
- SRTP Encryption: Secure voice transmission with SRTP support
- 2 Ethernet Ports: 10/100Mbps network connectivity for flexible deployment
- Comprehensive Codec Support: G.711A, G.711U, G.723, G.729A/B, iLBC, and AMR for voice quality flexibility
- Advanced Voice Features: ITU-T G.168 echo cancellation, dynamic jitter buffer, VAD, CNG, and PLC
- Auto Provisioning & Management: HTTP/HTTPS auto-provision, SNMPv1/v2/v3, TR069, and RADIUS support
- Compact Design: Desktop form factor ideal for small to medium deployments
Specifications
| Model | GA100-4 |
| FXS Ports | 4 |
| Interface | RJ11 |
| Ethernet Ports | 2 |
| SFP Port | No |
| Network Rate | 10/100Mbps |
| Protocol | SIP (RFC3261) — UDP, TCP, TLS |
| SRTP | √ |
| IPv6 | √ |
| Codec | G.711A, G.711U, G.723, G.729A/B, iLBC, AMR |
| Voice Capability | ITU-T G.168 Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC |
| Fax | T.30, T.38 |
| DTMF Mode | RFC2833, SIP Info, In-band |
| QoS | √ |
| Auto Provision | √ |
| Management | SNMPv1/v2/v3, TR069, RADIUS |
| Power Supply | 12V 1.5A |
| Power Consumption | <5W |
| Rack Mountable | No |
