Product Overview

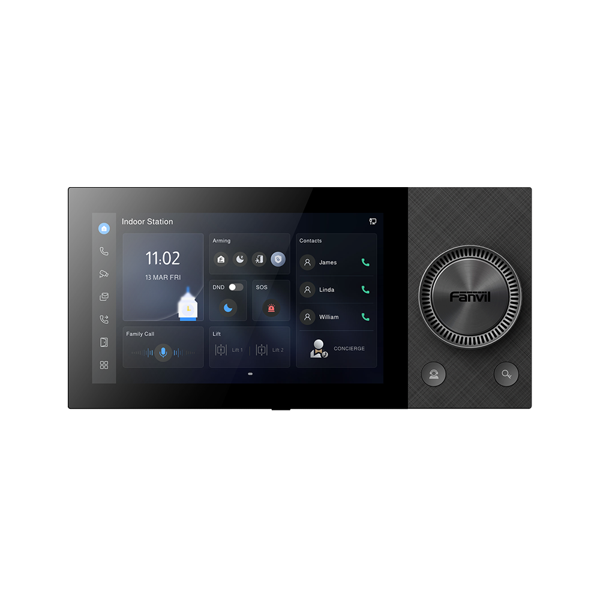

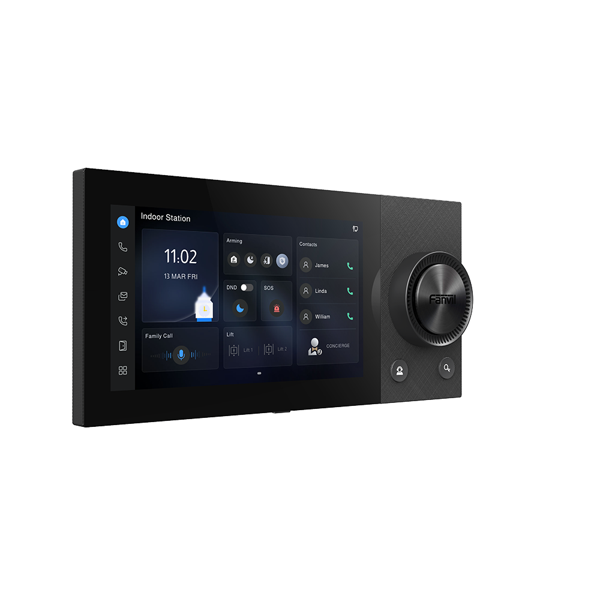

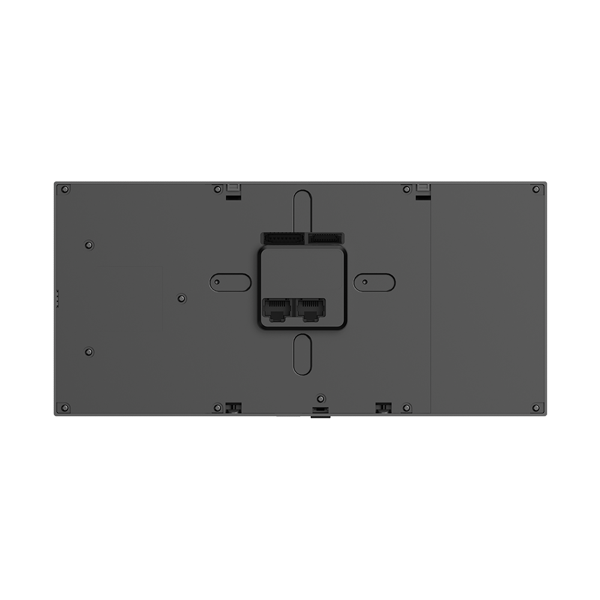

The Fanvil i564W is a 7-inch color touchscreen SIP indoor station that integrates professional video intercom and access control into a sleek, minimalist unit. A brand-new UI/UX design with a tactile volume knob delivers intuitive operation, while HD voice and one-touch family calling make instant, crystal-clear communication effortless. Ideal for mid-to-high-end residences, villas, and commercial buildings, it provides a safe, convenient, and smart living experience.
Key Features
- 7-inch IPS Capacitive Touchscreen: 1024×600 resolution IPS capacitive color touchscreen, richer colors
- Tactile Volume Knob: Equipped with a tactile volume knob and 2 function keys for intuitive control
- 6 SIP Lines: Supports 6 SIP accounts for multi-line communication

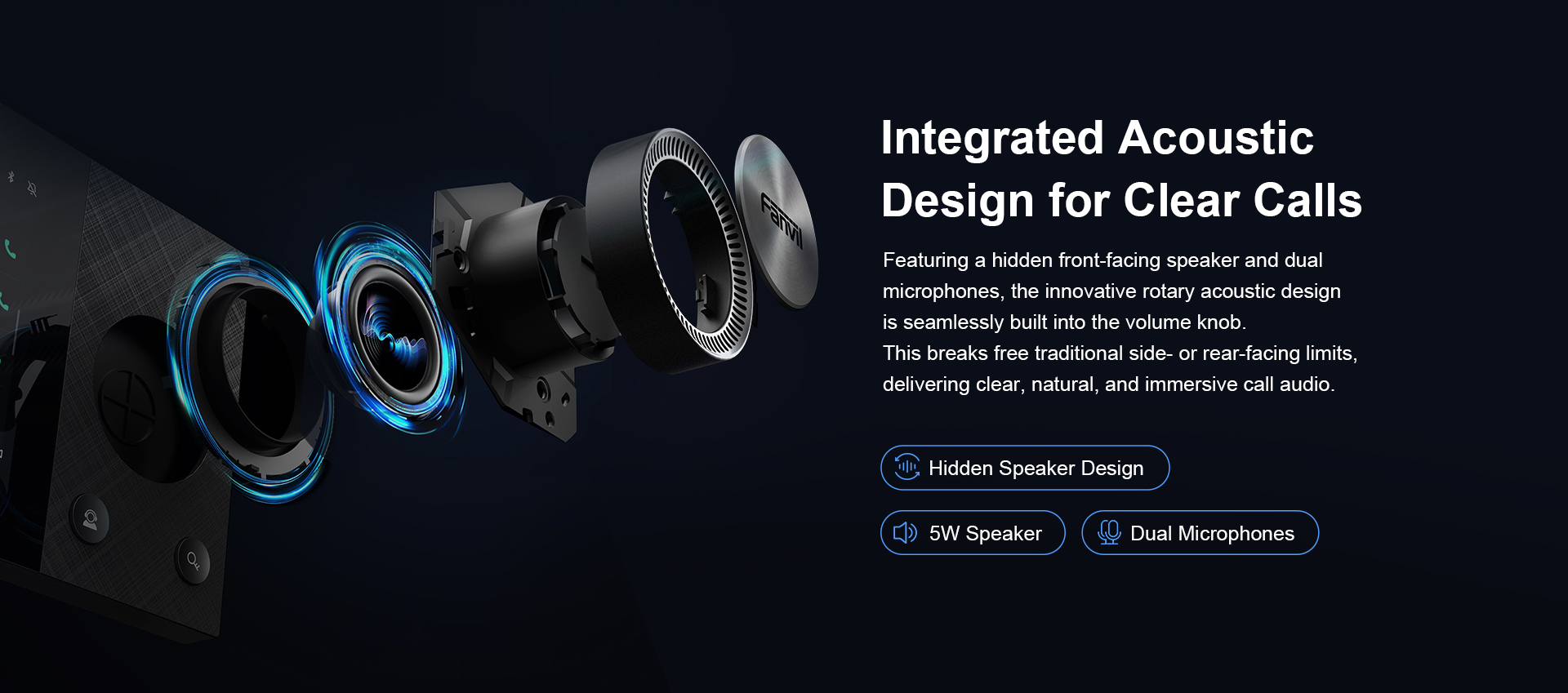

- 5W Multimedia Speaker: 5W high-power multimedia speaker delivers loud, clear sound
- 1080P HD Video: Supports 1080P full-HD video calls with H.264 encoding
- Bluetooth & Wi-Fi 6: Built-in Bluetooth and 2.4G Wi-Fi 6 for flexible connectivity
- One-Touch Family Call: Supports one-touch family calling for instant contact with loved ones
- Rich Expansion Interfaces: 8 alarm inputs, 1 short-circuit output, doorbell interface, RS-485
- TF Card Expansion: Supports TF card expansion, up to 256 GB
- Dual RJ45 Network: Equipped with 2× RJ45 10/100 Mbps network ports
- PoE Powered: Supports PoE for simplified installation

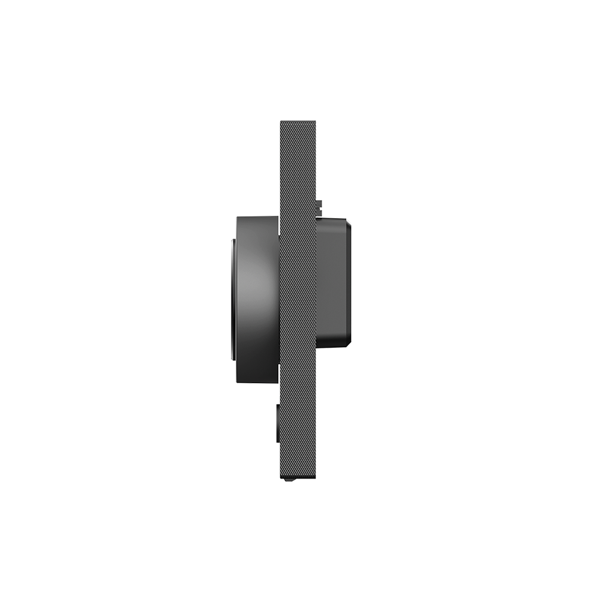

- Wall-Mounted: Sleek wall-mounted design for mid-to-high-end residences
Specifications
| System | Linux |
| Screen | 7-inch 1024×600 IPS capacitive color touchscreen |
| SIP Lines | 6 |
| HD Voice | √ |
| Wideband Codecs | G.722, Opus |
| Speaker Power | 5W multimedia speaker |
| Video Resolution | 1080P |
| Video Codec | H.264 |
| ONVIF | √ |
| Bluetooth | √ |
| Wi-Fi | Supports 2.4G Wi-Fi 6 |
| Keys | 1 knob, 2 function keys |
| Alarm Inputs | 8 |
| Short-Circuit Output | 1 |
| Doorbell Interface | 1 |
| RS-485 Interface | 1 |
| TF Card | √ (up to 256 GB) |
| Network | 2× RJ45 10/100 Mbps |
| PoE | √ |
| Installation | Wall-mounted |
