Product Overview

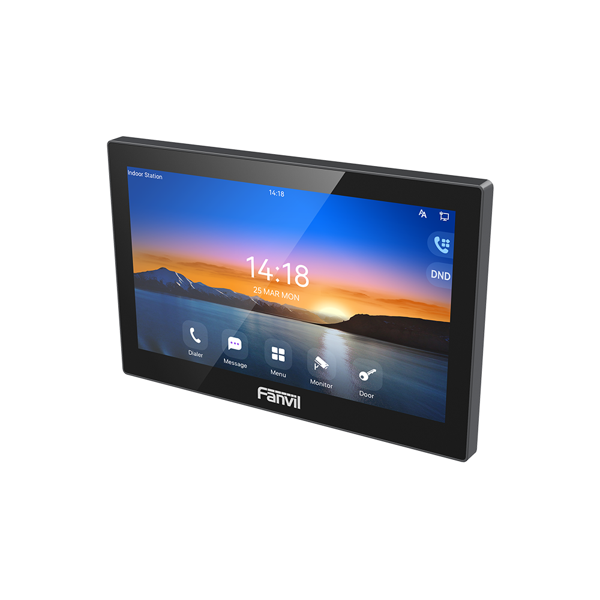

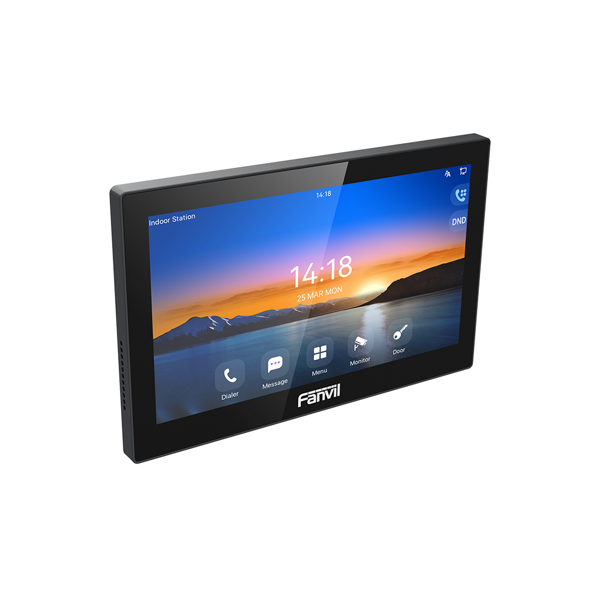

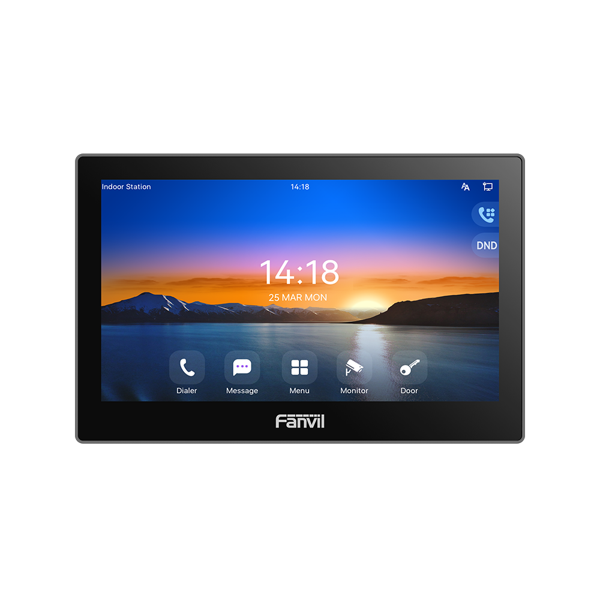

The Fanvil i504/i504W is a 7-inch touch-screen indoor station featuring a stylish design and intuitive UI. With a variety of expansion interfaces, it easily connects with security devices for features like two-way intercom, remote door opening, and alarms. Ideal for residential complexes, villas, and office buildings, it delivers a safe and convenient living experience. The i504W supports 2.4G/5G Wi-Fi.

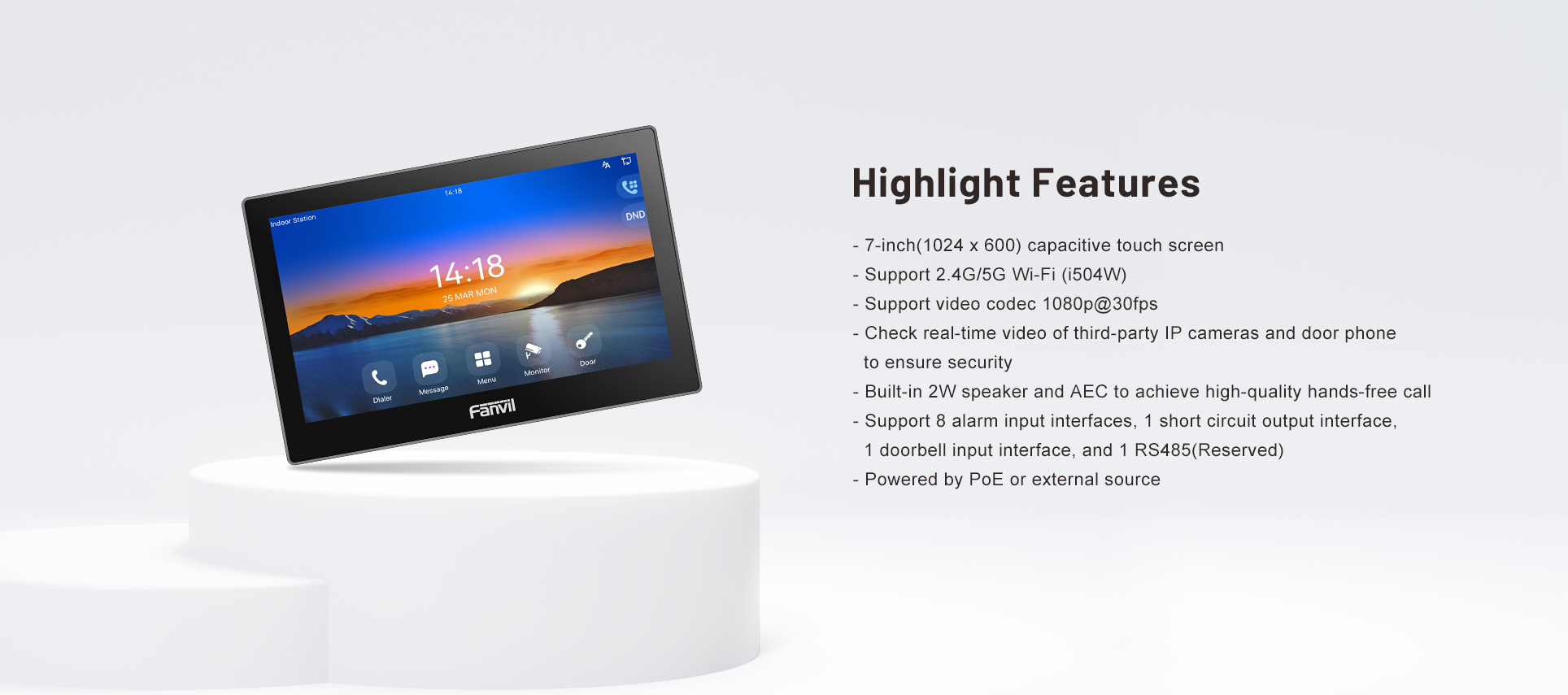

Key Features
- 7-inch Capacitive Touchscreen: 1024×600 resolution capacitive color touchscreen for fluid operation
- 6 SIP Lines: Supports 6 SIP accounts, meeting multi-line communication needs
- 1080P HD Video: Supports 1080P full-HD video calls with H.264 encoding

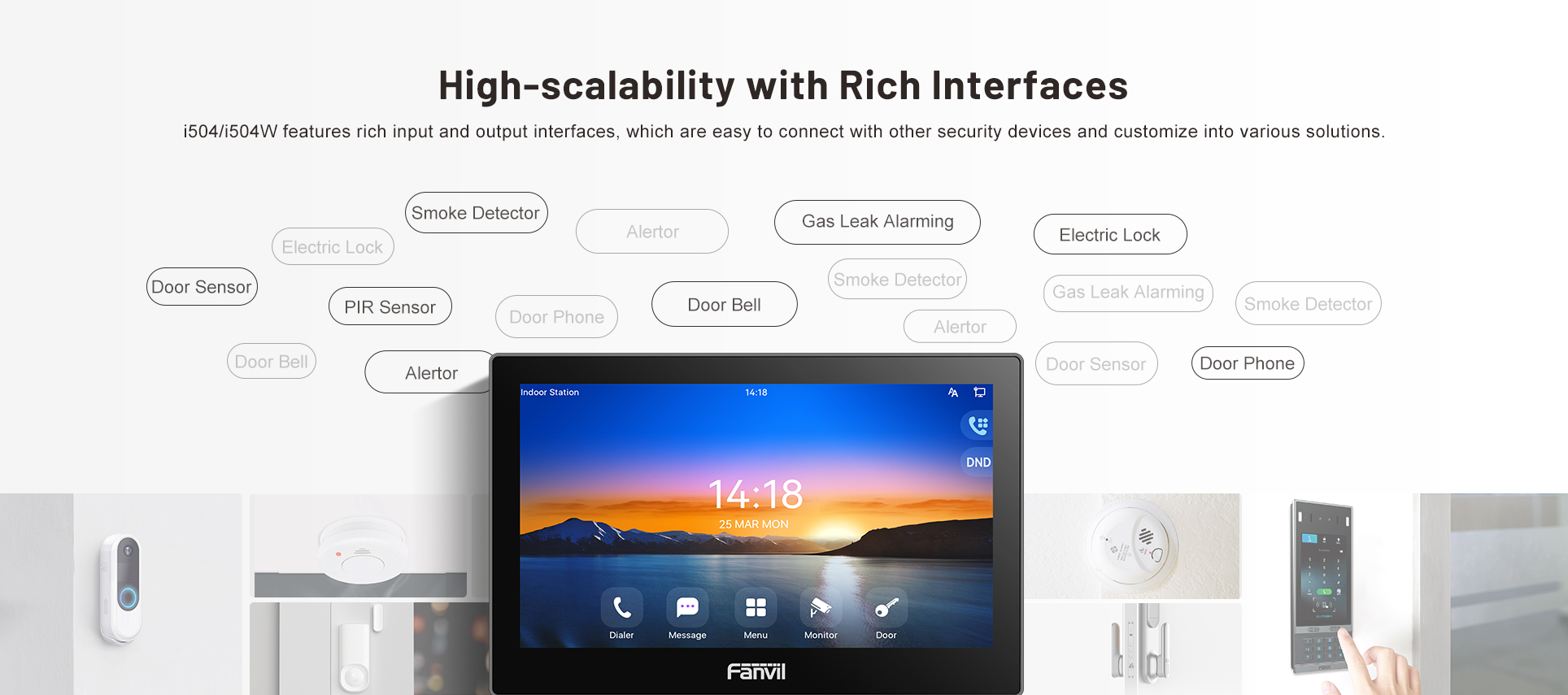

- Rich Expansion Interfaces: 8 alarm inputs, 1 short-circuit output, doorbell interface, RS-485
- ONVIF Support: Supports ONVIF protocol for integration with security monitoring systems
- PoE Powered: Supports PoE for simplified installation
- Wi-Fi Support (i504W): i504W model supports 2.4G/5G dual-band Wi-Fi
- HD Voice: Supports G.722 and Opus wideband codecs for clear, natural calls
- Wall-Mounted Installation: Sleek wall-mounted design, space-saving
Specifications
| System | Linux |
| Screen | 7-inch 1024×600 capacitive color touchscreen |
| SIP Lines | 6 |
| HD Voice | √ |
| Wideband Codecs | G.722, Opus |
| Speaker Power | 2W |
| Video Resolution | 1080P |
| Video Codec | H.264 |
| ONVIF | √ |
| Bluetooth | × |
| Wi-Fi | Supports 2.4G/5G Wi-Fi (i504W) |
| Keys | × |
| Alarm Inputs | 8 |
| Short-Circuit Output | 1 |
| Doorbell Interface | 1 |
| RS-485 Interface | 1 |
| Network | 10/100 Mbps |
| PoE | √ |
| Installation | Wall-mounted |
